X5
Continuous 3D Printing
A breakthrough in 3D printing, designed from the ground up for low-volume manufacturing.
Welcome to Continuous 3D Printing

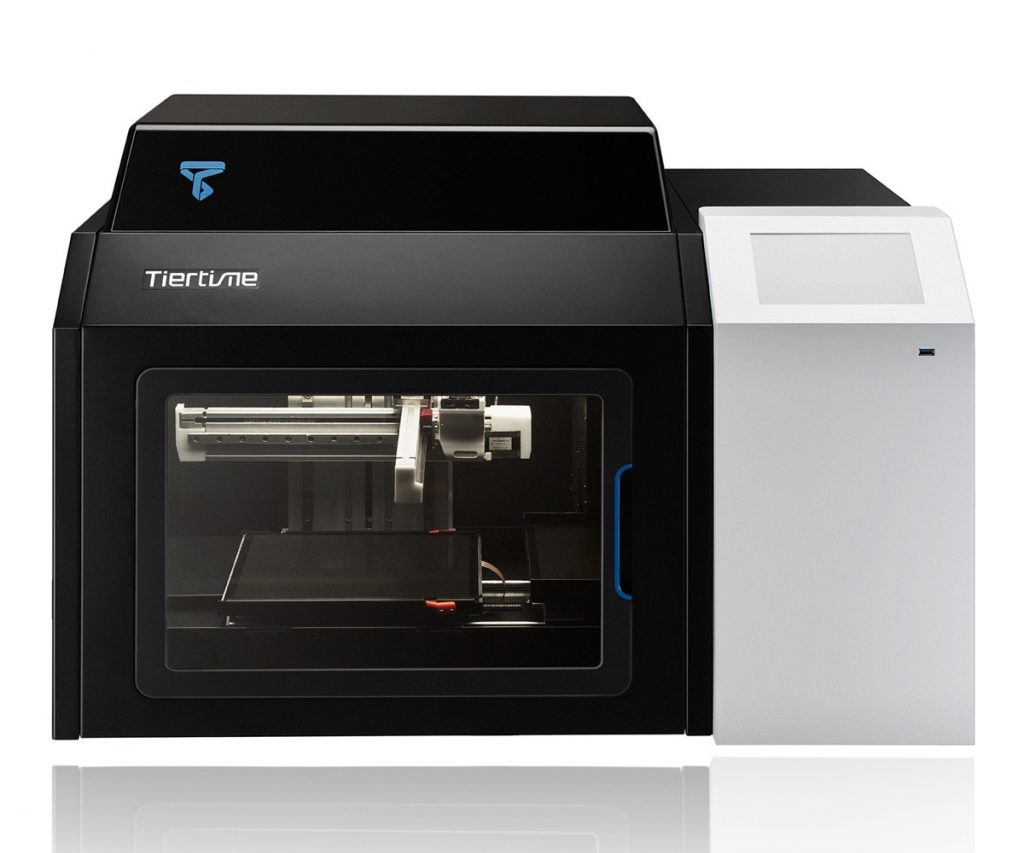

The X5 is a breakthrough in 3D printing, designed from the ground up for low-volume manufacturing.
Capable of automatically feeding up to 8 build plates onto its build platform and reloading during printing, it provides a continuous 3D printing experience.
Auto-Swapping Build Plate
Loading fresh print plates onto the build bed after the previous print job is complete.

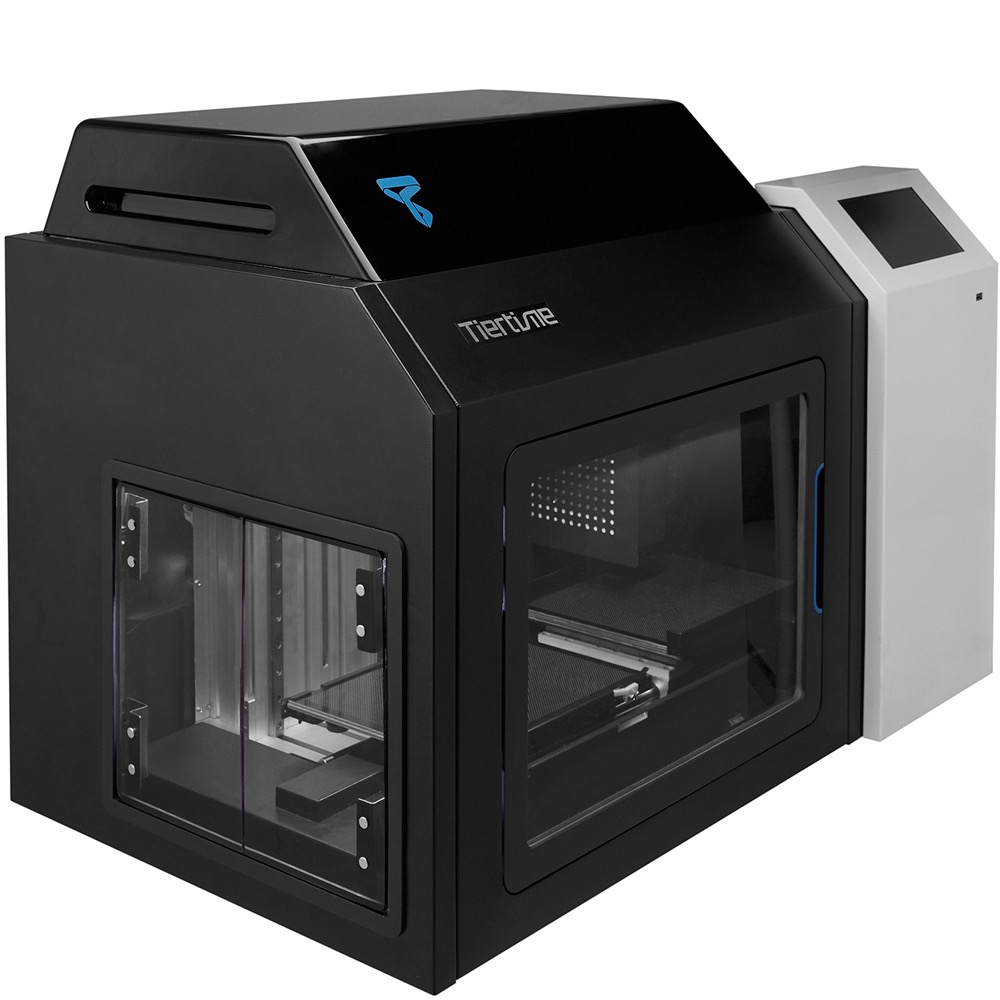

Build Plate Vault
Housing twelve build plates
with one 3D Printer
Tiertime Print Queue
Multiple users to stack print jobs into a queue, accessible from the printer’s touchscreen and from software.

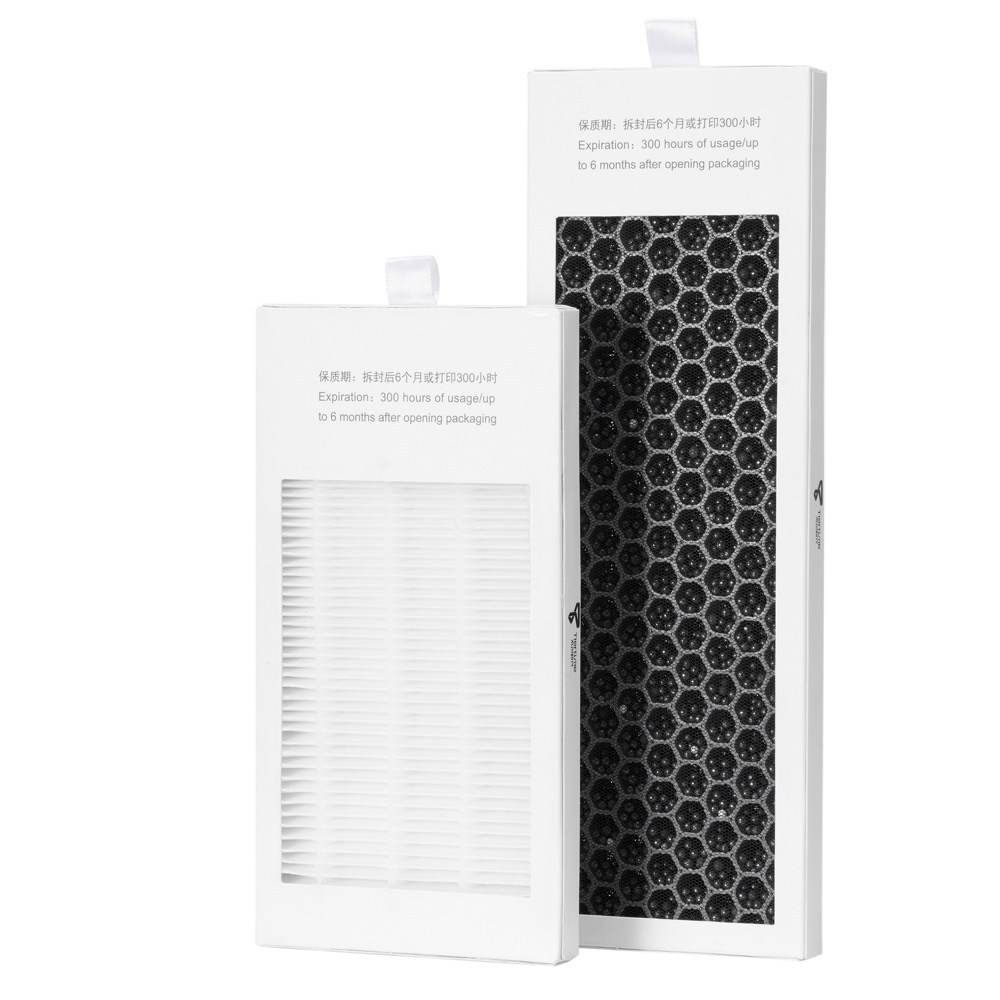

Dual Filtration System
HEPA and activated carbon filters
radically reducing toxic UFP and VOC emissions.
Eight Print Jobs – One 3D Printer
Auto-Swapping Build Plate
automatically loading fresh build plates
onto the build platform after the previous print job is complete.
Dual Filtration System
HEPA and Activated Carbon Filters
Radically reducing toxic UFP and VOC emissions.
Specifications and Warranty
Specifications
Warranty
Printer |
|
| Printing Technology | MEM (Melted Extrusion Modelling) |
| Extruder | Single 1 pc PLA Extruder included |
| Nozzle Diameter | 0.2mm, 0.4mm, 0.6mm, and 0.5mm (TPU) |
| Extruder Maximum Temperature | 299℃ |
| Extruder Maximum Travel Speed | 200 mm/sec |
| XYZ Accuracy | 7, 7, 1.5 micron |
| Connectivity | USB Cable, Wi-Fi, LAN and USB Drive |
| Display | 7″ Full Colored LCD Touchscreen |
| Build Volume | 180 × 230 × 200 mm (7″ x 9″ x7.8″)（XYZ） |
| Printed Object Accuracy | ±0.1mm/100mm |
| Layer Resolution | 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm |
| Build Plate Maximum Temperature | 100℃ |
| 校准和水准 | 自动校准和列弗eling between Each Print Job |
| Build Plate Surface | Perforated, Heated |
| Pause to Change Filament Type | Yes |
| Out of Filament Detection | Yes |
| Filament | UP Fila ABS, ABS+, PLA, TPU and more * Requires ABS or TPU print heads, sold separately. |
| Filament Diameter | 1.75mm |
| Filament Bay Capacity | 500 – 2000g |
| Filament Holder Capacity | 500 – 1000g |
| Compatible with 3rd Party Filament | Yes |
Software |
|
| Software | UP Studio Version 2.5 or above |
| Supported OS | Windows 7 (SP1) or higher (32 bit and 64 bit) Mac OS 10.10 |
| Hardware Requirements | OpenGL 2.0 At least 4GB of RAM |
| Importable File Formats | .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds |
| Preview Support Structures | Yes |
| Editable Support Structures | Yes |
Physical Dimensions |
|
| Machine Dimensions | 850 x 625 x 520 mm (33.4″ x 24.6″ x 20.5″) |
| Net Weight | 52kg |
| Shipping Box Dimensions | – |
| Shipping Box Weight | 70kg |
Power Requirements |
|
| Power Input | 110-240VAC，50-60Hz，220W |
